SERC has developed an integrated navigation system between station recievers and databank in the server. All recorded data is sent to local and database server. Breakdown of SE system is shown figures belows.

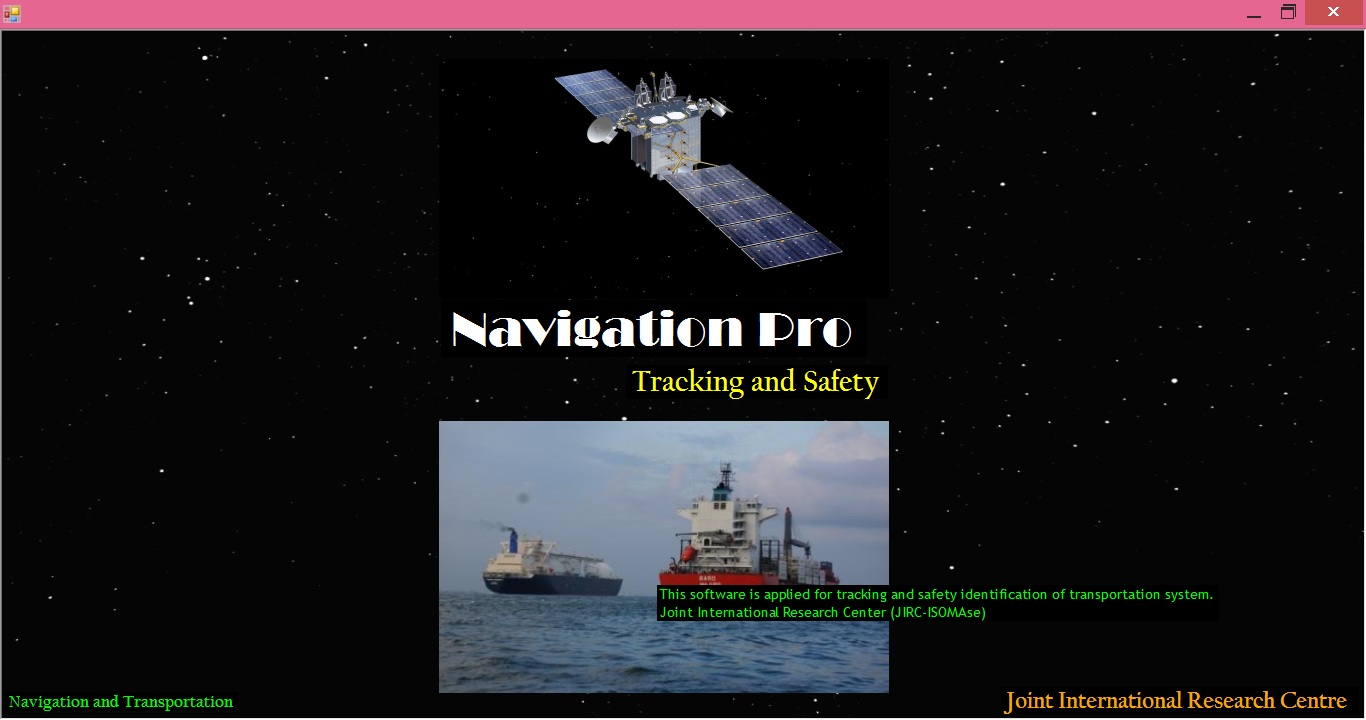

Figure.1: Front page of the SE Software.

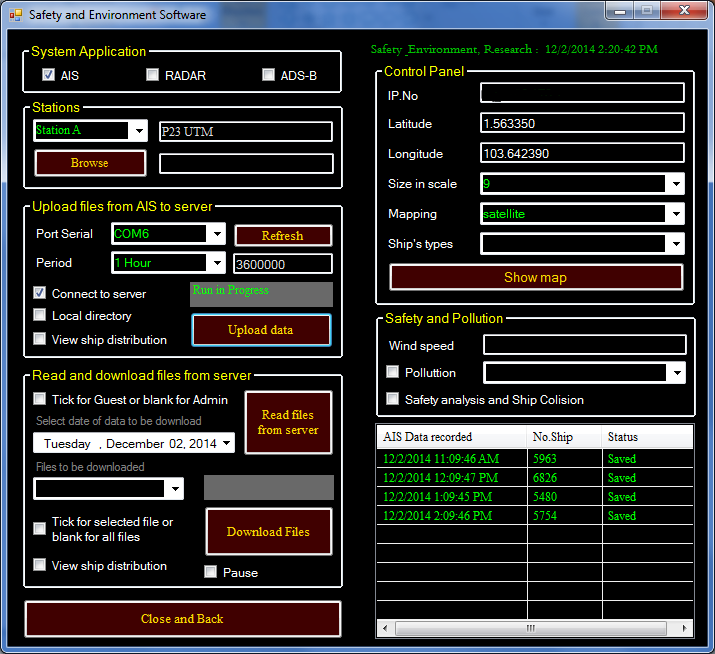

Figure.2: The SE software upload file to ISOMAse server.

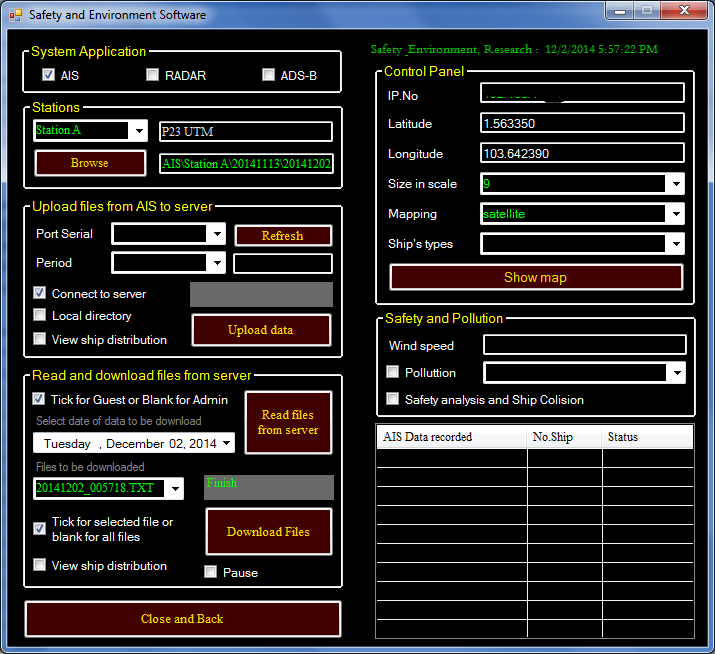

Figure.3: The SE software download file from ISOMAse server.

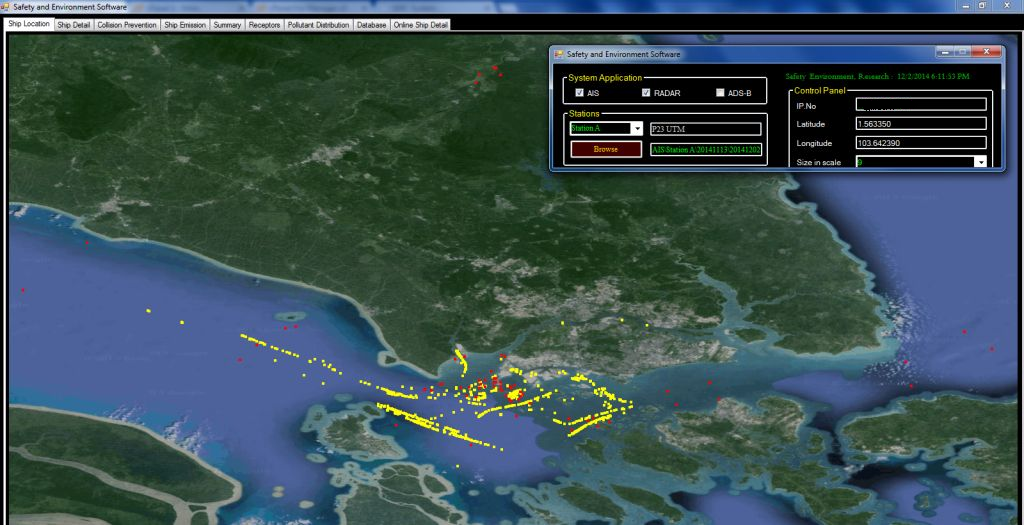

Figure.4: Ships was tracked by AIS and Radar system.
