Tensile test for 2 mm, 2.5 mm, 6 mm and 8 mm of mooring lines for model scale were carried out in Tensile laboratory, Mechanical Engineering, Universiti Teknologi Malaysia. Results of the tensile tested were used to design the chain-wire and fully wire mooring lines of floating structures.

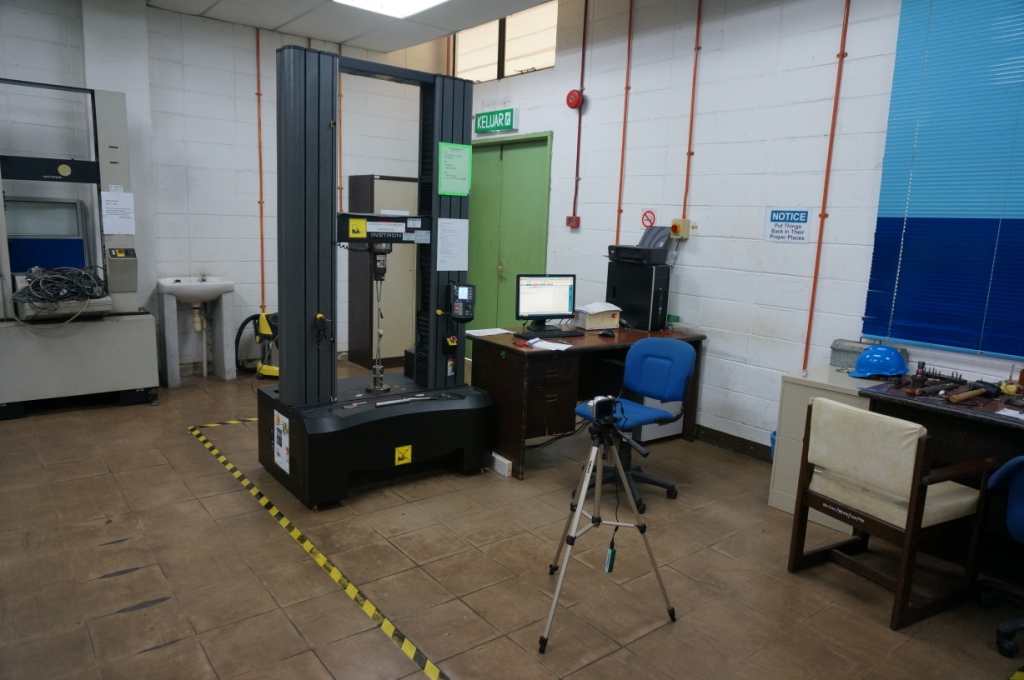

Figure.1: Wire rope mooring lines were test in Tensile laboratory, Mechanical Engineering, Universiti Teknologi Malaysia (taken by Koto).

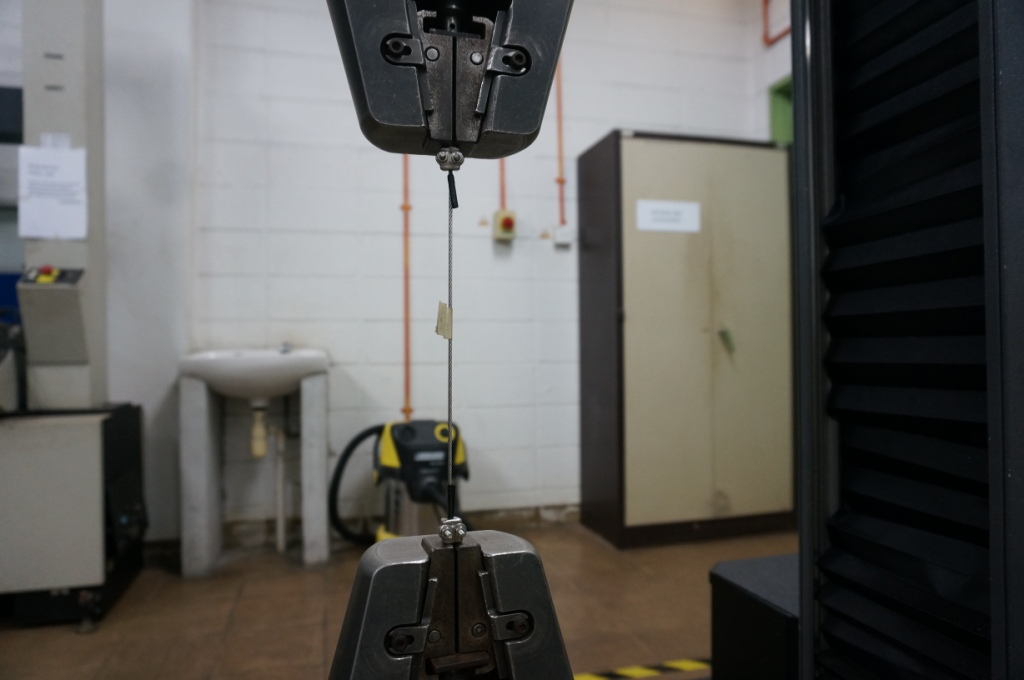

Figure.2: Model scale of chain-wire mooring during testing Tensile laboratory, Mechanical Engineering, Universiti Teknologi Malaysia (taken by Koto).

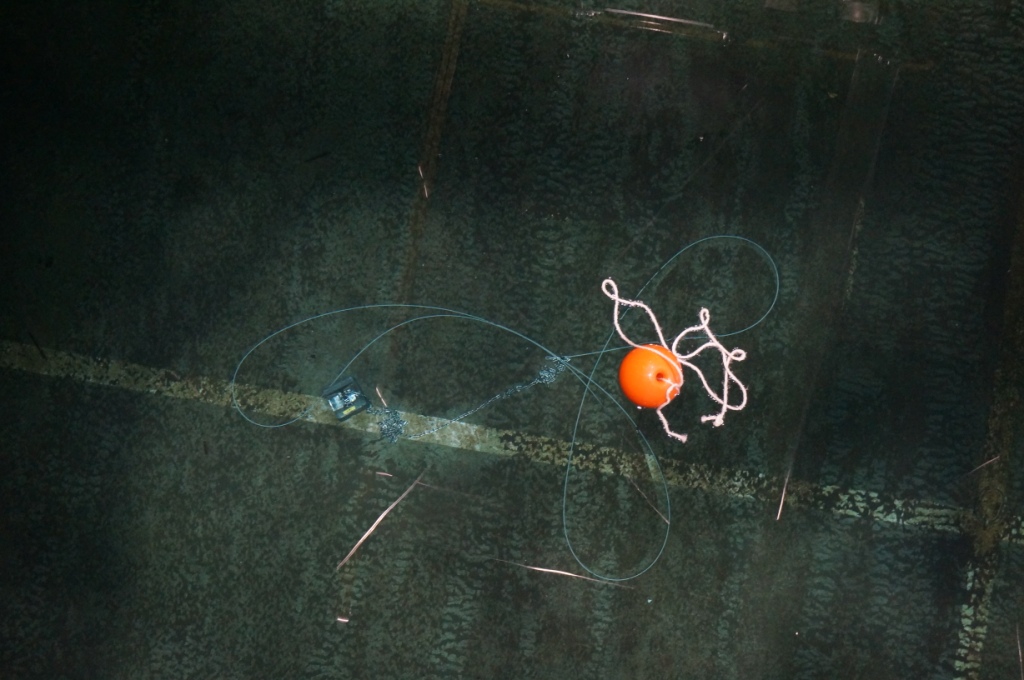

Figure.3: Model scale of chain-wire mooring lines in the marine dynamic basin tank, NRIFE, Japan to be installed in the Rounded-shape FPSO (taken by Koto).

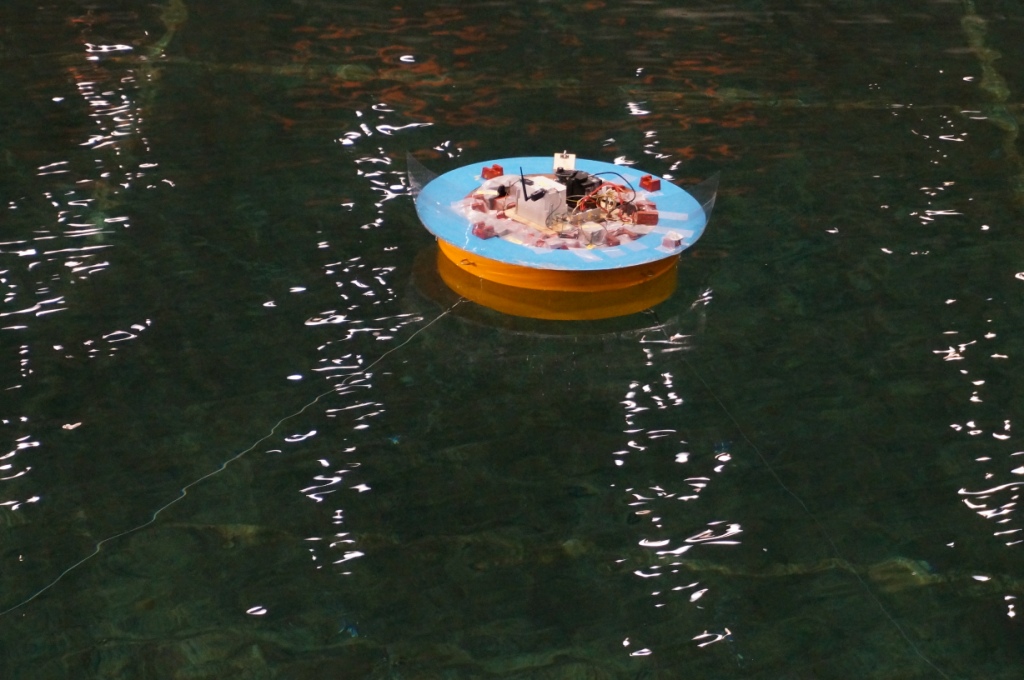

Figure.4: Model scale of full wire mooring lines in the marine dynamic basin tank, NRIFE, Japan installed in the Rounded-shape FPSO during experiment (taken by Koto).
